华为路由器配置DHCP服务及给指定PC分配固定IP地址
最后更新：2022-01-13 14:23:37 手机定位技术交流文章
DHCP服务器配置：
#
sysname DHCP
dhcp enable #开启DHCP服务
#
ip pool vlan10
gateway-list 192.168.10.254
network 192.168.10.0 mask 255.255.255.0

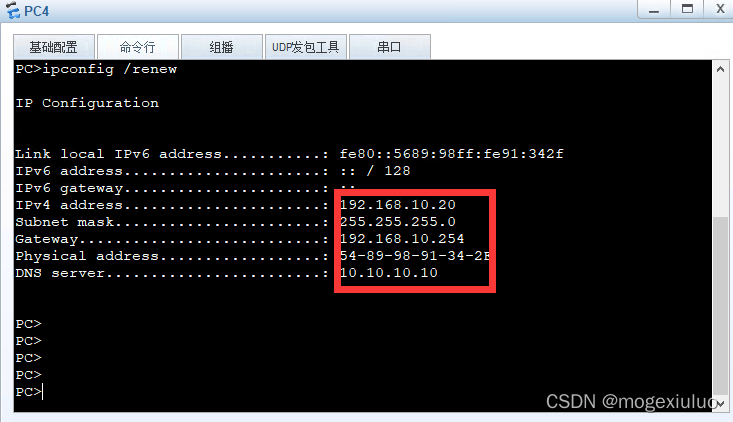

static-bind ip-address 192.168.10.20 mac-address 5489-9891-342f //给指定PC分配固定IP地址
excluded-ip-address 192.168.10.250 192.168.10.253
dns-list 10.10.10.10
#
ip pool vlan20 #创建地址池
gateway-list 192.168.20.254 #设置网关
network 192.168.20.0 mask 255.255.255.0 #配置网段
excluded-ip-address 192.168.20.250 192.168.20.253 #保留IP地址
dns-list 20.20.20.20 #配置DNS
#
ip pool vlan30
gateway-list 192.168.30.254
network 192.168.30.0 mask 255.255.255.0
excluded-ip-address 192.168.30.250 192.168.30.253
dns-list 30.30.30.30
#端口的配置
interface GigabitEthernet0/0/0
ip address 192.168.50.254 255.255.255.0
dhcp select global 开启DHCP全局模式
ip route-static 0.0.0.0 0.0.0.0 192.168.50.251 #配置静态路由
DHCP中继LSW1
u t m
sys
[Huawei]sys SW5
[SW5]vlan batch 10 20 30 50
[SW5]int g0/0/1
[SW5-GigabitEthernet0/0/1]p l a
[SW5-GigabitEthernet0/0/1]p d v 50
[SW5-GigabitEthernet0/0/1]q
[SW5]port-group group-member g0/0/2 to g0/0/4
[SW5-port-group]p l t
[SW5-GigabitEthernet0/0/2]p l t
[SW5-GigabitEthernet0/0/3]p l t
[SW5-GigabitEthernet0/0/4]p l t
[SW5-port-group]p t a v a
[SW5-GigabitEthernet0/0/2]p t a v a
[SW5-GigabitEthernet0/0/3]p t a v a
[SW5-GigabitEthernet0/0/4]p t a v a
[SW5]int vlanif50
[SW5-Vlanif50]ip add 192.168.50.251 24
[SW5-Vlanif50]q
[SW5]dhcp enable
[SW5]int vlanif10
[SW5-Vlanif10]dhcp select relay
[SW5-Vlanif10]dhcp relay server-ip 192.168.50.254
[SW5-Vlanif10]q
[SW5]int vlanif20
[SW5-Vlanif20]ip add 192.168.20.251 24
[SW5-Vlanif20]dhcp select relay
[SW5-Vlanif20]dhcp relay server-ip 192.168.50.254
[SW5-Vlanif20]q
[SW5]int vlanif30
[SW5-Vlanif30]ip add 192.168.30.251 24
[SW5-Vlanif30]dhcp selec relay
[SW5-Vlanif30]dhcp relay server-ip 192.168.50.254
[SW5-Vlanif30]q
其他交换机基础配置
创建VLAN batch 10 20 30
配置端口模式 access 或者 trunk
以交换机LSW2为例：
<Huawei>u t m
Info: Current terminal monitor is off.
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys SW1
[SW1]vlan ba
[SW1]vlan batch 10 20 30
[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]p l a
[SW1-GigabitEthernet0/0/1]p d v 10
[SW1-GigabitEthernet0/0/1]int g0/0/2
[SW1-GigabitEthernet0/0/2]p l t
[SW1-GigabitEthernet0/0/2]p t a v a

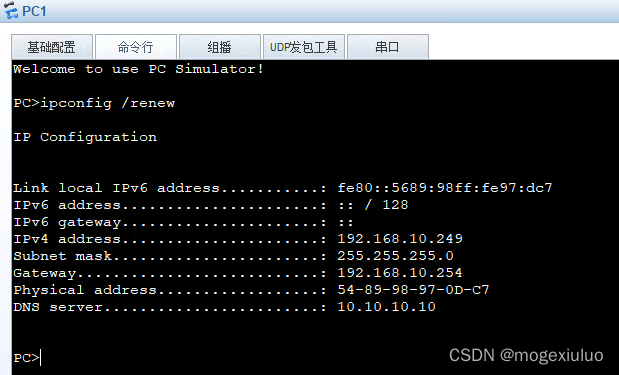

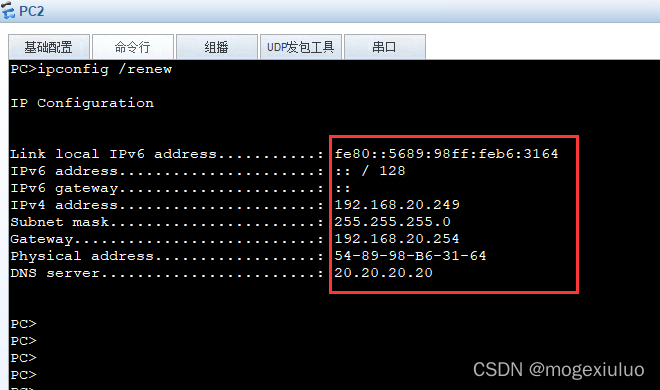

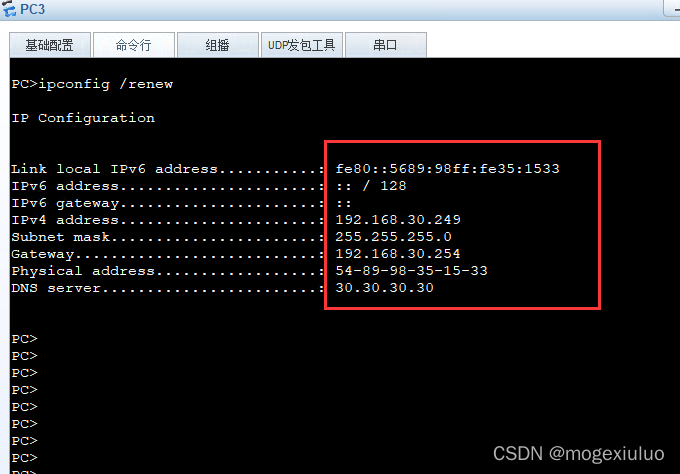

最后终端设备获取IP地址等网络参数
