思科模拟器静态路由&动态路由
最后更新：2022-04-27 20:44:33 手机定位技术交流文章
静态路由

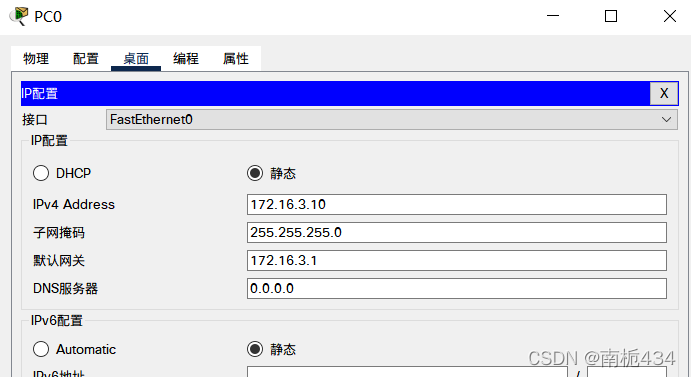

pc0:

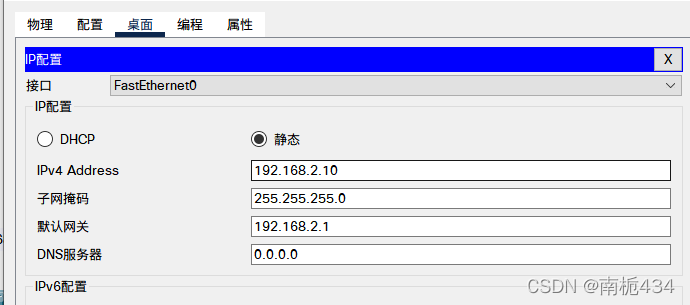

pc1:

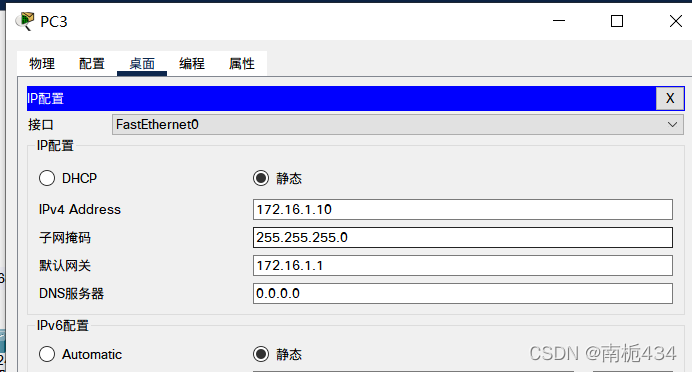

pc3:
路由器1：
interface GigabitEthernet0/1
ip address 172.16.3.1 255.255.255.0
duplex auto
speed auto
!
interface Serial0/0/0
no ip address
clock rate 2000000
shutdown
!
interface Serial0/0/1
ip address 172.16.2.1 255.255.255.0
!
interface Vlan1
no ip address
shutdown
!
ip classless
ip route 172.16.1.0 255.255.255.0 172.16.2.2
ip route 192.168.2.0 255.255.255.0 172.16.2.2
ip route 192.168.1.0 255.255.255.0 172.16.2.2
路由器2：
interface GigabitEthernet0/1
ip address 192.168.2.1 255.255.255.0
duplex auto
speed auto
!
interface Serial0/0/0
ip address 192.168.1.1 255.255.255.0
!
ip route 172.16.1.0 255.255.255.0 192.168.1.2
ip route 172.16.3.0 255.255.255.0 192.168.1.2
ip route 172.16.2.0 255.255.255.0 192.168.1.2
路由器0：
interface GigabitEthernet0/1
ip address 172.16.1.1 255.255.255.0
duplex auto
speed auto
!
interface Serial0/0/0
ip address 192.168.1.2 255.255.255.0
clock rate 2000000
!
interface Serial0/0/1
ip address 172.16.2.2 255.255.255.0
clock rate 2000000
ip route 172.16.3.0 255.255.255.0 172.16.2.1
ip route 192.168.2.0 255.255.255.0 192.168.1.1

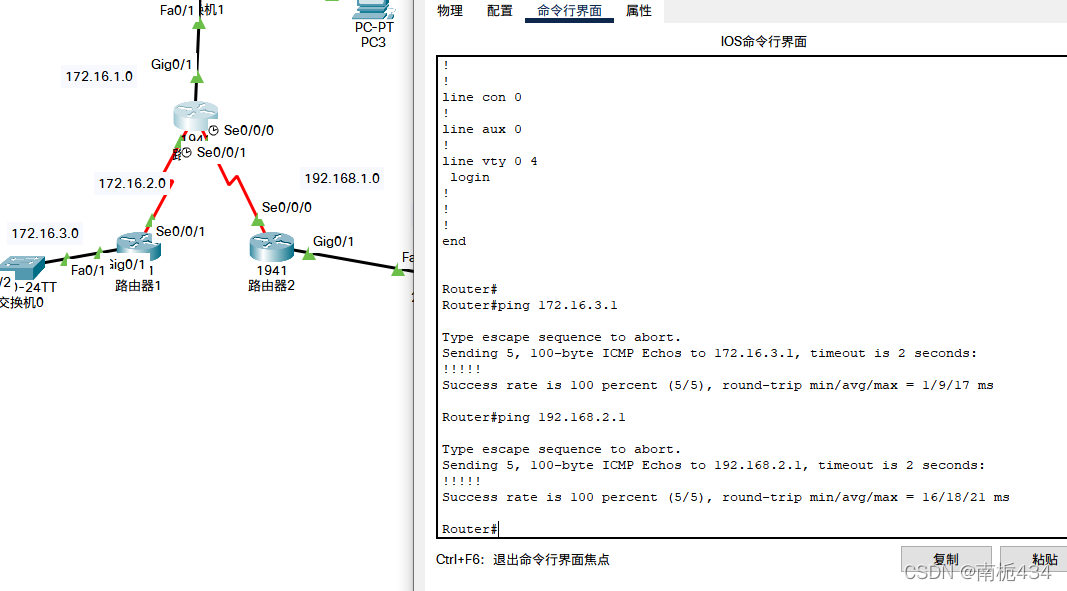

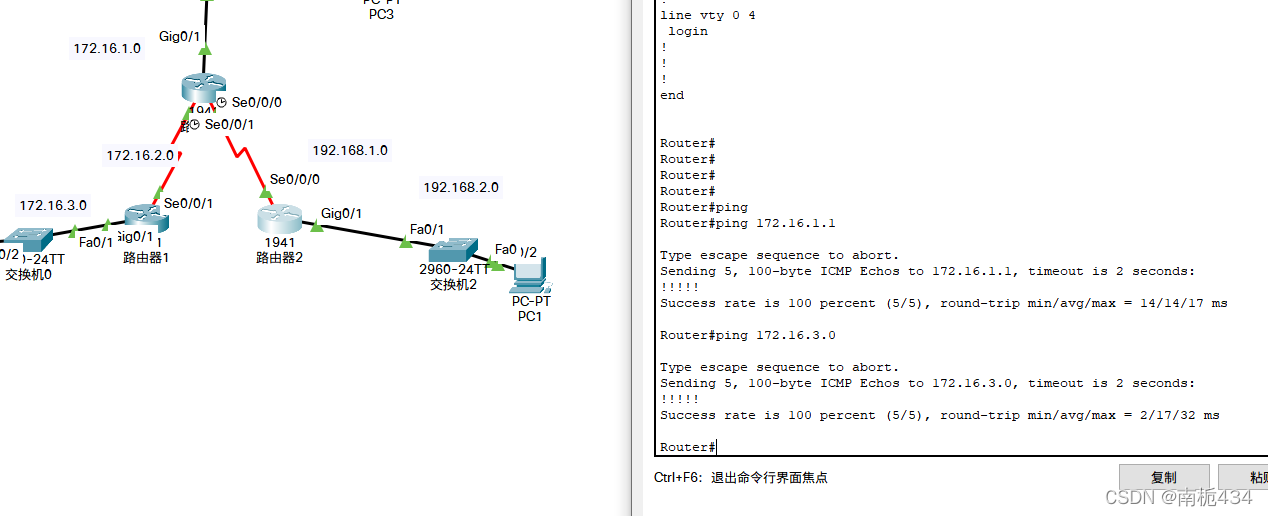

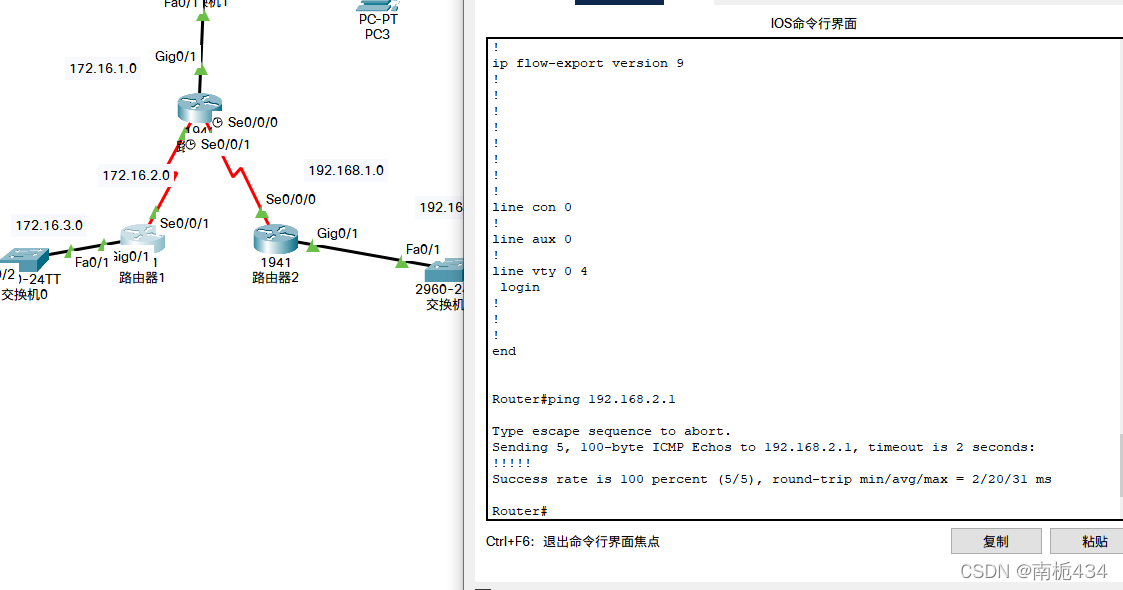

验证：
动态路由

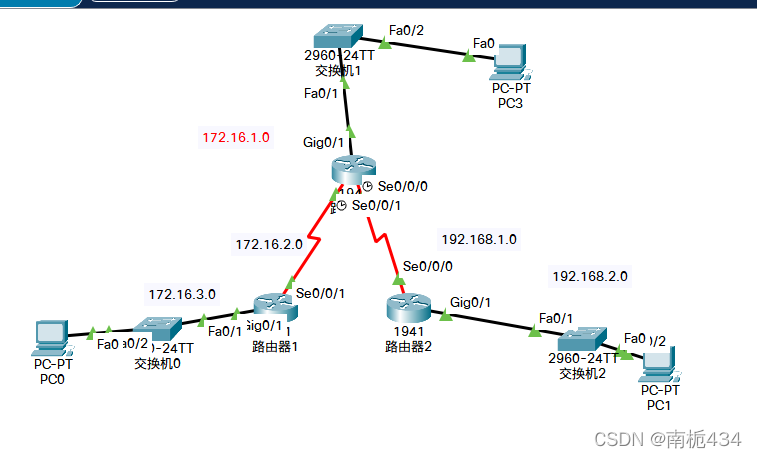

拓扑图同上
pcIP同上
路由器0：
router rip
version 2
network 172.16.0.0
network 192.168.1.0
no auto-summary
路由器1：
router rip
version 2
network 172.16.0.0
no auto-summary
路由器2：
router rip
version 2
network 192.168.1.0
network 192.168.2.0
no auto-summary

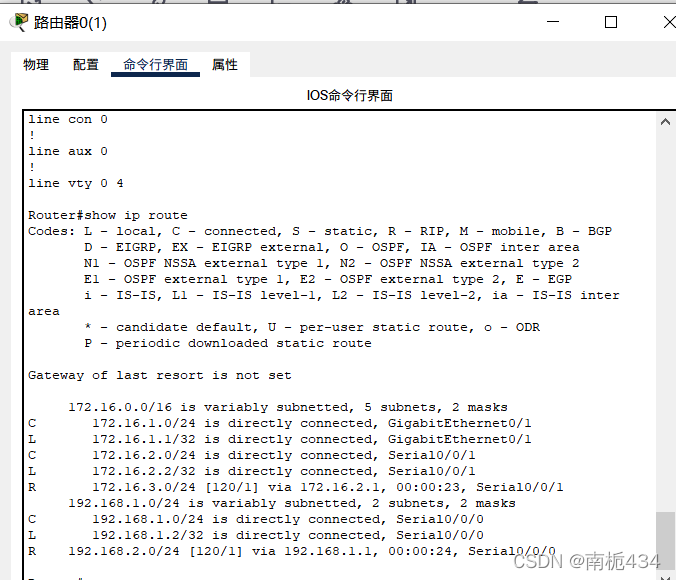

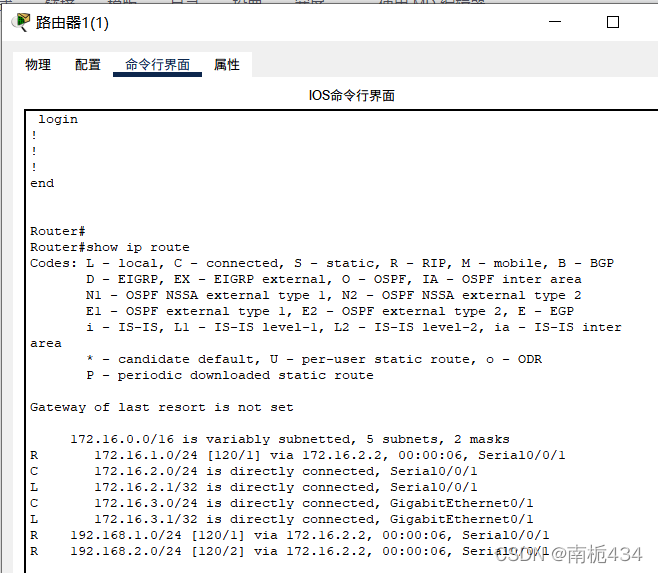

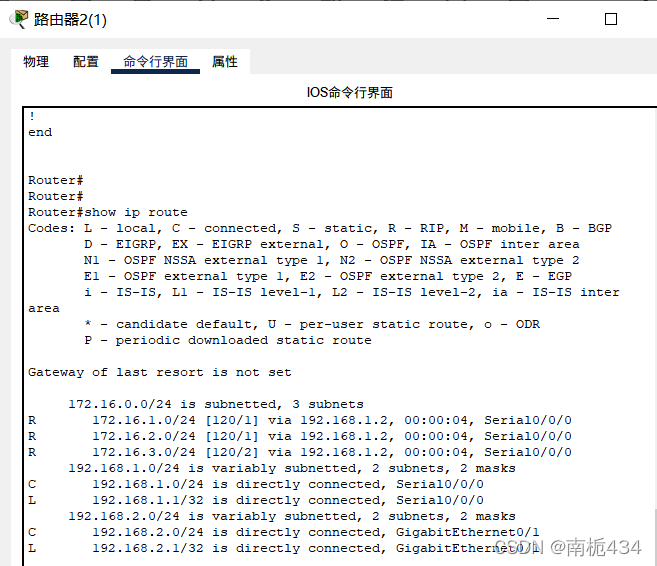

验证：
